41) La Gaviota-Almacemaniento subterráneo

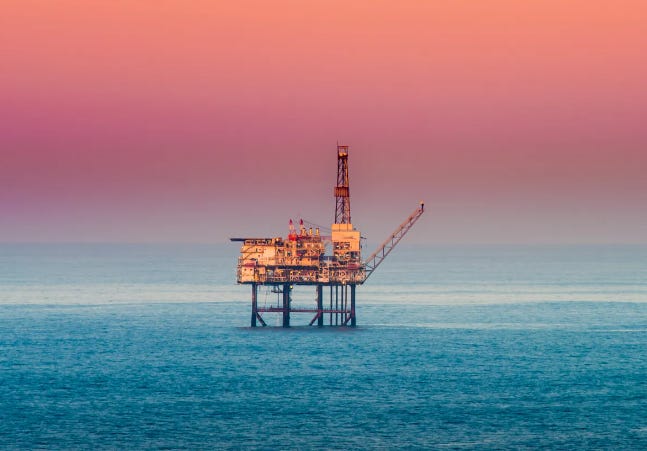

Para los que seáis amantes de la mítica serie George R. Martin “Game of Throne”, muy cerca de la ermita de San Juan de Gaztelugatxe, Rocadragon en la ficción, está uno de los pocos almacenamientos off shore del mundo. La plataforma ‘La Gaviota’ se encuentra a 8km de la costa de Bermeo (Bizkaia, País Vasco) en el mar cantábrico.
En la década de los 80, tras realizar los sondeos pertinentes y conocer la viabilidad de la explotación del yacimiento de gas, y tras una inversión inicial de 360M€ de Repsol para la construcción de la plataforma offshore anclada al fondo del mar con 20 pilotes, y la correspondiente planta en tierra, en 1986 comenzó a estar operativa. No obstante, en 1994 se agoto el yacimiento y la superficie de 64km² paso a emplearse como almacenamiento de gas natural.
En 2010 Repsol, propietario por aquel entonces del 82% almacén subterráneo, vendió el activo por 86,9 M€ a Enagás (el 18% restante era de Murphy Spain Oil Company).
Analizando el perfil de La Gaviota, se observa claramente una clara variación estacional, con una inyección típicamente en los meses más calurosos, y una extracción en los meses más fríos.
Como datos destacables del yacimiento:
Gas operativo 979 Mm³ (=0,979 bcm)
Gas colchón extraíble 567 Mm³
Capacidad útil 1546 Mm³
Capacidad Inyección máxima diaria 4,5 Mm³
Capacidad extracción máxima diaria 5,7 Mm³
Gas colchón no extraíble 1134 Mm³
Ante el panorama de incertidumbre que cierne sobre la seguridad energética de Europa, la Unión Europea ha exigido que para el 1 de Noviembre de 2022 los países miembros llenen mínimo el 80% de su capacidad de almacenamiento de gas natural. En los años venideros el umbral se ha elevado a 90%. España tiene los deberes hechos, ya que a día de hoy dispone de 87,45% de su capacidad de almacenamiento llena.
Partiendo de la premisa de que cada m³ de gas natural aporta 10,62kWh de energía, en el siguiente link, https://agsi.gie.eu/,quien tenga curiosidad, podrá ver entre otras cosas, cuánto gas natural tiene cada país de la UE disponible a día de hoy o % almacenado respecto a su consumo anual.
Para el caso de España, a 19 de Septiembre de 2022, disponemos de reservas de gas natural (30,82TWh) que alcanzan el 8,27% de nuestro consumo interno anual, que asciende a un total de 372,75 TWh. En lo relativo a comparar con nuestros homólogos europeos que consumen más gas natural que España, podemos comprobar que Alemania con su almacenamiento cubre el 21,95% de su demanda anual, Francia 26,96%, Italia 21,67% y Países Bajos 28,44%.
41) La Gaviota-Underground Storage
For those of you who are lovers of the legendary George R. Martin series “Game of Throne”, very close to the hermitage of San Juan de Gaztelugatxe, Rocadragon in fiction, is one of the few offshore storage facilities in the world. The 'La Gaviota' platform is located 8km off the coast of Bermeo (Bizkaia, Basque Country) in the Cantabrian Sea.
In the 1980s, after carrying out the pertinent surveys and knowing the feasibility of exploiting the gas field, and after an initial investment of €360M from Repsol for the construction of the offshore platform anchored to the seabed with 20 piles, and the corresponding plant on land, in 1986 began to be operational. However, in 1994 the deposit was exhausted and the 64 km² area was used as natural gas storage.
In 2010 Repsol, owner at that time of 82% of the underground warehouse, sold the asset for €86.9 million to Enagás (the remaining 18% belonged to Murphy Spain Oil Company).
Analyzing the profile of La Gaviota, a clear seasonal variation is clearly observed, with an injection typically in the hottest months, and an extraction in the coldest months.
As remarkable data of the deposit:
Operating gas 979 Mm³ (=0.979 bcm)
Removable mattress gas 567 Mm³
Useful capacity 1546 Mm³
Maximum daily injection capacity 4.5 Mm³
Maximum daily extraction capacity 5.7 Mm³
Non-removable mattress gas 1134 Mm³
Given the panorama of uncertainty that hangs over Europe's energy security, the European Union has demanded that by November 1, 2022, member countries fill at least 80% of their natural gas storage capacity. In the coming years the threshold has been raised to 90%. Spain has done its homework, as today it has 87.45% of its storage capacity full.
Starting from the premise that each m³ of natural gas provides 10.62kWh of energy, in the following link, https://agsi.gie.eu/, whoever is curious, will be able to see, among other things, how much natural gas each country has of the EU available today or % stored with respect to its annual consumption.
In the case of Spain, as of September 19, 2022, we have natural gas reserves (30.82TWh) that reach 8.27% of our annual internal consumption, which amounts to a total of 372.75 TWh. Regarding the comparison with our European counterparts that consume more natural gas than Spain, we can verify that Germany with its storage covers 21.95% of its annual demand, France 26.96%, Italy 21.67% and the Netherlands 28. .44%.
