66) 3º y 4º Artículo "Radiografía energética de Euskadi"
De pequeño siempre me ha suscitado una fascinación especial Astérix y Obélix, debido al relato cómico de las aventuras de los protagonistas de una pequeña aldea contra el imperio romano, al puro estilo David contra Goliat. En la evolución del ser humano, si excluimos de la ecuación la variable del tiempo, el factor de mayor peso en su desarrollo ha sido la domesticación de la energía. Esta hipótesis se puede comprobar por la influencia de la electricidad en nuestras vidas, siendo este el cohesionador intangible que hace rodar la sociedad. Tal es el punto, que si desapareciera la electricidad, el colapso de la especie humana, sería cuestión de meses. Es por ello que vamos a analizar las raíces del árbol energético de Euskadi, para disponer de una visión global de nuestro “roble”.
En el año 1986 Repsol realizó una inversión de 360 millones de euros para la construcción de “La Gaviota”, plataforma offshore anclada al fondo del mar con 20 pilotes, desde donde se inició la explotación del yacimiento de gas. Sin embargo, para 1994 se agotó el recurso fósil y la superficie de 64 km² pasó a emplearse como almacenamiento de gas natural, hoy en día propiedad de Enagás.
En la actualidad el País Vasco no dispone de recurso energético fósil. Por ende, y tras consultar los datos de 2021 de Red Eléctrica España sobre la demanda total de electricidad de la región, 15892 GWh, Euskadi tiene que importar el 57% (9086 GWh), siendo su saldo energético claramente importador.
Un año antes de que Neil Armstrong pisara la Luna, en esta pequeña aldea la visión de futuro de los hermanos Sendagorta derivó en la creación de Petróleos del Norte en 1968, que posteriormente se rebautizó como Petronor. Inicialmente su actividad se centraba en suministrar fuel oil a las plantas de generación eléctrica, pero su objetivo siempre ha sido refinar y comercializar productos petrolíferos y sus derivados, tal es así, que con la democratización del uso del vehículo ligero la misión se fue transformando para cubrir la necesidad creciente de combustibles líquidos ligeros.
La producción total de Petronor rebasó los 8 millones de toneladas de productos en 2021. Paralelamente, en la última década, la Unión Europea ha perdido el 10% de su capacidad de refino, síntoma del retroceso de la industria petrolera a nivel mundial achacable a la gradual desinversión en el sector. La reducción de 2 millones de barriles diarios de petróleo propuestos por la OPEP, junto a la posible incorporación de Arabia Saudí al seno de los BRICS (conformados por Brasil, Rusia, India, China y Sudáfrica), pueden desequilibrar el orden establecido, causando un hito en las relaciones internacionales. Por otra parte, las sanciones occidentales a Rusia, imposibilitando la importación de petróleo ruso, dejan de manifiesto la importancia capital de disponer de una refinería, como la de Muskiz, capaz de procesar crudos de distintas procedencias.
Es plausible que la dinámica de la concentración de las refinerías de petróleo se intensifique esta década, surgiendo de ello algunas refinerías “todoterreno” que sean capaces de procesar aceites vegetales, residuos sólidos urbanos y orígenes dispares del petróleo que le sea accesible a Occidente. Asimismo, la creación de hidrocarburos sintéticos con idénticas propiedades a los actuales, partiendo de dióxido de carbono e hidrógeno renovable será una alternativa real que permitirá seguir usando uno de los mayores descubrimientos de Europa, el motor de combustión interna, a la vez que se fomenta la economía circular mediante la captura y el uso del CO₂.
Todo lo previamente descrito carecería de importancia sin una adecuada lanzadera, sin embargo, el Puerto de Bilbao es la puerta al mercado mundial, ya que se trata de un puerto estratégico muy bien conectado y reconocido dentro del corredor del Atlántico TEN-T por parte de la Comisión Europea. La Terminal Marítima de Petronor en Punta Lucero en 2021, ha registrado un movimiento de 11,3 millones de toneladas de crudo de petróleo, productos derivados y otras materias. Análogamente, según las estadísticas de tráficos del puerto de Bilbao en 2021 presentadas por Ricardo Barkala, el tráfico total alcanzó las 31,2 millones de toneladas.
Enclavado en el Puerto de Bilbao se encuentra otra de las raíces del árbol vasco, la instalación de Bahía de Bizkaia Gas S.L. (BBG), quien es la sociedad propietaria de la terminal de descarga y de la planta de regasificación de gas natural licuado (al 50% entre el Ente Vasco de la Energía y Enagás). Aunque el gas natural ya tenía un largo recorrido en el estado, en agosto de 2003, se puso en marcha la planta regasificadora con la descarga del primer buque metanero “Bristish Innovator”.
Dicha planta se encuentra situada en un enclave geográfico estratégico ideal para las cargas procedentes de América y Norte de Europa para garantizar el suministro energético de Euskadi. A su vez, refuerza el sistema gasista español y en menor medida el europeo, mediante sus conexiones con Francia de 3500 millones de m3 en Irun y 5000 millones de m3 en Larrau. A pesar de la cobertura mediática inusitada que ha padecido el gas natural a raíz del riesgo de suministro por la guerra de Ucrania, cabe destacar que en las últimas dos décadas se han descargado más de 800 buques metaneros en la instalación de Bizkaia.
El uso del gas natural se puede dividir en tres grandes bloques, el primero para calentar los hogares, segundo como materia prima o fuente calor en la industria y por último, para la producción de energía eléctrica. Nos centraremos en este último, ya que disponemos de dos instalaciones de ciclo combinado donde se realiza la combustión del gas natural con una alta eficiencia térmica. En 2005 se puso en marcha el ciclo combinado de Boroa en Amorebieta con sus 800 MW de potencia nominal y en 2003 la Central de Ciclo Combinado de Bahía Bizkaia Energía (BBE) que se ubica en una parcela de cinco hectáreas en el puerto de Bilbao también con 800 MW. Esta última propiedad compartida entre British Petroleum (BP) con un 75% y Ente Vasco de Energía con el 25%.
El futuro pasa por reducir el impacto sobre la Tierra, para ello será necesario descarbonizar la industria y como corolario, disponer de más energía renovable. En 2021 se publicó el paquete legislativo Fit for 55 que ya se anunciaba en la comunicación del Pacto Verde Europeo (European Green Deal) para aumentar el esfuerzo de reducción de emisiones en 2030 del 40% al 55% respecto a los niveles de 1990. Para conseguir esta meta, el objetivo de cuota de renovables en energía final se aumentó del 32% al 40%, lo que afecta a todos los sectores.
Según los datos del Instituto Vasco de Competitividad – Orkestra presentados en el documento “Energías renovables en Euskadi: ahora, más que nunca”, en 2020 la energía de origen renovable representaba el 9,8% de la demanda de energía primaria y el 16,9 % del consumo final de energía en Euskadi (8,5% sin contar con la electricidad importada). Aunque la Estrategia Energética de Euskadi 2030 tiene como objetivo que la cuota de las energías renovables en el consumo final de energía sea 21%.
En 2021, los 603 MW de potencia instalada de energías renovables eléctricas en Euskadi estaba distribuida de la siguiente manera: hidráulica 173MW, eólica 153 MW, fotovoltaica 79 MW, solar térmica 91MW, biomasa 84 MW, geointercambio 23 MW y energía marina 0,3 MW, lejos del objetivo de 1.885 MW de potencia eléctrica renovable total establecido en la Estrategia Energética de Euskadi 2030.
Una de las principales características del sector industrial vasco es la relevancia que en él tiene la industria pesada. Aquí se concentran entre otros sectores, el sector siderometalúrgico, refino, caucho, vidrio, pasta y papel, donde la energía se emplea para transformar grandes cantidades de productos brutos en productos semi-elaborados o bienes de equipo.
El Clúster de Energía de Euskadi ha cifrado el volumen de negocio en CAPV del sector energético vasco en 15.700 millones de euros, contando con 434 empresas en su haber, entre otros, con Iberdrola como cuarta energética del mundo y otras empresas de referencia como Ingeteam. Resulta paradójico que a pesar de disponer de un sector energético muy potente que cubre toda la cadena de valor, nos deberemos conformarnos con ser desarrolladores tecnológicos en energías renovables, más que en una aldea autosuficiente energéticamente hablando.
Desgraciadamente la instalación de energías renovables genera desconfianza, de ahí que exista el dicho “Not in my backyard”, que se traduce en “No en mi jardín”. Moralmente todos queremos ser sostenibles y fomentar las energías renovables, pero no estamos dispuestos a asumir la responsabilidad de sacrificar nuestro círculo cercano por un bien común mayor. Es por ello que hace años que no se instalan aerogeneradores en Euskadi, por citar algunos de los parques eólicos existentes; en Elgea-Urkilla en 2003 se pusieron en servicio 32,2 MW, en 2004 sobre el monte Oiz se instalaron 34 MW, en 2005 el parque eólico de Badaia de 49,5 MW o en 2006 en Puerto de Bilbao, con una potencia de 10 MW.
Tras una década de estancamiento, parece que la tendencia podría revertirse en 2023, ya que Iñigo Ansola informó que una decena de instalaciones de energía eólica se encuentran en fase de tramitación en Euskadi, hasta un total de 486 MW. Por enumerar algunos, el parque 'Azazeta' de 40 MW de la empresa Aixeindar (Ente Vasco de Energía e Iberdrola) , el proyecto 'Cantoblanco', con una potencia de 49 MW, en Añana y Ribera Alta o el parque eólico 'Artzentales-Sopuerta' de 50 MW, en las localidades vizcaínas de Muskiz, Galdames, Sopuerta y Artzentales.
En esa coyuntura, al igual que nuestros ancestros se echaron a la mar para perseguir a las ballenas hasta Terranova en el siglo XV, nosotros volveremos nuestra mirada a la mar, concretamente a la franja costera de 176 km a las orillas del mar Cantábrico que disponemos, como opción para la generación de energía renovable mediante la tecnología eólica off-shore.
Dicha tecnología está extendida en el mar báltico, dado que el lecho marino se encuentra a 55 m de profundidad y es viable anclar las plataformas a tierra firme. En el mar, la densidad del aire es menor, y ante la ausencia de obstáculo a cota 0, el viento es más constante. Por ende, se obtienen mayores factores de carga en los aerogeneradores marinos, es decir una mayor generación eléctrica. No obstante, el reto no es sencillo, ya que el ambiente marino es corrosivo debido a la salinidad intrínseca del mar. Todo ello deriva en un aumento del coste del mantenimiento de las instalaciones.
Pero el mayor reto que nos enfrentamos en Euskadi radica en ser capaces de desarrollar plataformas flotantes que permitan erigirse los aerogeneradores en funcionamiento, dado que el lecho marino del Golfo de Bizkaia no permitirá anclarlo, ya que la fosa de Cap Breton discurre paralela a la costa cantábrica cortando la plataforma y el talud continental.
En frente del municipio de Armintza en 2015 el Gobierno Vasco creó una área de ensayos restringida a la navegación que denominó BiMEP (Biscay Marine Energy Platform), la cual situada a 2 millas náuticas con una profundidad de 85 m. Ese lugar resulta idóneo para probar la plataforma eólica flotante DemoSATH de 2 MW de Saitec. Dado que esta tecnología, nos permitirá de disponer de la energía renovable que nos falta en tierra, debido a la ausencia de un gran recurso solar o viento por la orografía del territorio, y de ese modo, evolucionar hacia una sociedad más respetuosa con el medioambiente.
Volviendo a las raíces del árbol, ya sabemos cuál es la pócima mágica para Euskadi, aunque esta vez no esté creada por el druida de la aldea, Panorámix. Ya lo afirmo el francés Antoine-Laurent Lavoisier, “La energía ni se crea ni se destruye, se transforma”, y al igual que nos reconvertimos en los años 80, y sembramos los mimbres para la cadena de valor de la energía eólica terrestre, se nos vuelve abrir una ventana para convertirnos en pioneros en esta tecnología disruptiva. Ya que esta tecnología si supera la bravura del mar cantábrico, puede ser exportable a prácticamente todas las costas del mundo. Volvamos a conquistar en mundo, BOGA MARINELA!
66) 3rd and 4th Article "Energy Analysis: Case of study of Euskadi"
As a child, Asterix and Obelix have always aroused a special fascination for me, due to the comical account of the adventures of the protagonists of a small village against the Roman Empire, in the pure David versus Goliath style. In the evolution of the human being, if we exclude the variable of time from the equation, the most important factor in its development has been the domestication of energy. This hypothesis can be verified by the influence of electricity in our lives, being this the intangible cohesive that makes society roll. Such is the point, that if electricity disappeared, the collapse of the human species would be a matter of months. That is why we are going to analyze the roots of the Euskadi energy tree, to have a global vision of our “oak”.
In 1986 Repsol made an investment of 360 million euros for the construction of "La Gaviota", an offshore platform anchored to the bottom of the sea with 20 piles, from where the exploitation of the gas field began. However, by 1994 the fossil resource was exhausted and the 64 km² area began to be used as natural gas storage, today owned by Enagás.
Currently, the Basque Country does not have a fossil energy resource. Therefore, and after consulting the 2021 data from Red Eléctrica España on the total electricity demand in the region, 15,892 GWh, the Basque Country has to import 57% (9,086 GWh), its energy balance being clearly an importer.
A year before Neil Armstrong set foot on the Moon, in this small village the vision of the Sendagorta brothers led to the creation of Petróleos del Norte in 1968, which was later renamed Petronor. Initially, its activity was focused on supplying fuel oil to electricity generation plants, but its objective has always been to refine and market petroleum products and their derivatives, so much so that with the democratization of the use of light vehicles, the mission was transformed to meet the growing need for light liquid fuels.
Petronor's total production exceeded 8 million tons of products in 2021. At the same time, in the last decade, the European Union has lost 10% of its refining capacity, a symptom of the decline in the oil industry worldwide attributable to the gradual disinvestment in the sector. The reduction of 2 million barrels of oil per day proposed by OPEC, together with the possible incorporation of Saudi Arabia into the BRICS (consisting of Brazil, Russia, India, China and South Africa), could unbalance the established order, causing a milestone in international relations. On the other hand, Western sanctions against Russia, making it impossible to import Russian oil, show the paramount importance of having a refinery, like the one in Muskiz, capable of processing crude oil from different sources.
It is plausible that the dynamics of the concentration of oil refineries will intensify this decade, giving rise to some “all-terrain” refineries that are capable of processing vegetable oils, municipal solid waste and disparate origins of oil that is accessible to the West. Likewise, the creation of synthetic hydrocarbons with identical properties to the current ones, starting from carbon dioxide and renewable hydrogen will be a real alternative that will allow one of the greatest discoveries in Europe, the internal combustion engine, to continue to be used, while promoting the circular economy through the capture and use of CO₂.
Everything previously described would be unimportant without an adequate shuttle, however, the Port of Bilbao is the door to the world market, since it is a strategic port that is very well connected and recognized within the TEN-T Atlantic corridor by the European Commission. The Petronor Maritime Terminal in Punta Lucero in 2021, has registered a movement of 11.3 million tons of crude oil, derivative products and other materials. Similarly, according to the traffic statistics for the port of Bilbao in 2021 presented by Ricardo Barkala, total traffic reached 31.2 million tons.
Nestled in the Port of Bilbao is another of the roots of the Basque tree, the Bahía de Bizkaia Gas S.L. (BBG), which is the company that owns the discharge terminal and the liquefied natural gas regasification plant (50% between the Ente Vasco de la Energía and Enagás). Although natural gas already had a long history in the state, in August 2003, the regasification plant started up with the unloading of the first LNG tanker “Bristish Innovator”.
This plant is located in an ideal strategic geographical enclave for loads from America and North Europe to guarantee the energy supply of the Basque Country. In turn, it reinforces the Spanish gas system and, to a lesser extent, the European one, through its connections with France of 3,500 million m3 in Irun and 5,000 million m3 in Larrau. Despite the unusual media coverage that natural gas has suffered as a result of the supply risk due to the war in Ukraine, it should be noted that in the last two decades more than 800 methane tankers have been unloaded at the Bizkaia facility.
The use of natural gas can be divided into three large blocks, the first for heating homes, the second as a raw material or heat source in industry, and finally, for the production of electricity. We will focus on the latter, since we have two combined cycle facilities where the combustion of natural gas is carried out with high thermal efficiency. In 2005, the Boroa combined cycle plant was started up in Amorebieta with its 800 MW nominal power and in 2003 the Bahía Bizkaia Energía Combined Cycle Plant (BBE), which is located on a five-hectare plot in the port of Bilbao, also with 800 MW. This last ownership is shared between British Petroleum (BP) with 75% and Ente Vasco de Energía with 25%.
The future involves reducing the impact on the Earth, for this it will be necessary to decarbonize the industry and as a corollary, to have more renewable energy. In 2021, the Fit for 55 legislative package was published, which was already announced in the communication of the European Green Deal (European Green Deal) to increase the effort to reduce emissions in 2030 from 40% to 55% compared to 1990 levels. To achieve this goal, the objective of the share of renewables in final energy was increased from 32% to 40%, which affects all sectors.
According to the data from the Basque Institute of Competitiveness - Orkestra presented in the document "Renewable energies in the Basque Country: now, more than ever", in 2020 energy from renewable sources represented 9.8% of primary energy demand and 16, 9% of final energy consumption in the Basque Country (8.5% without counting imported electricity). Although the Euskadi 2030 Energy Strategy aims for the share of renewable energy in final energy consumption to be 21%.
In 2021, the 603 MW of installed power from renewable electricity in the Basque Country was distributed as follows: hydroelectric 173MW, wind 153 MW, photovoltaic 79 MW, solar thermal 91MW, biomass 84 MW, geo-exchange 23 MW and marine energy 0.3 MW, far from the target of 1,885 MW of total renewable electrical power established in the Euskadi 2030 Energy Strategy.
One of the main characteristics of the Basque industrial sector is the importance of heavy industry in it. Here, among other sectors, the iron and steel, refining, rubber, glass, pulp and paper sectors are concentrated, where energy is used to transform large quantities of raw products into semi-finished products or capital goods.
The Euskadi Energy Cluster has estimated the volume of business in the Basque Country in the Basque energy sector at 15,700 million euros, with 434 companies to its credit, among others, with Iberdrola as the fourth largest energy company in the world and other leading companies such as Ingeteam. It is paradoxical that despite having a very powerful energy sector that covers the entire value chain, we will have to settle for being technological developers in renewable energy, rather than in an energetically self-sufficient village.
Unfortunately, the installation of renewable energies generates mistrust, hence the saying “Not in my backyard”, which translates into “Not in my garden”. Morally, we all want to be sustainable and promote renewable energy, but we are not willing to assume the responsibility of sacrificing our inner circle for a greater common good. That is why wind turbines have not been installed in the Basque Country for years, to mention some of the existing wind farms; 32.2 MW were put into service in Elgea-Urkilla in 2003, 34 MW were installed on Mount Oiz in 2004, in 2005 the 49.5 MW Badaia wind farm or in 2006 in the Port of Bilbao, with a capacity of 10MW.

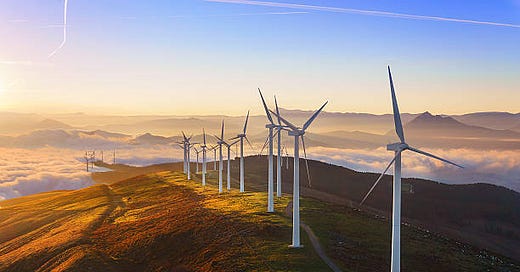

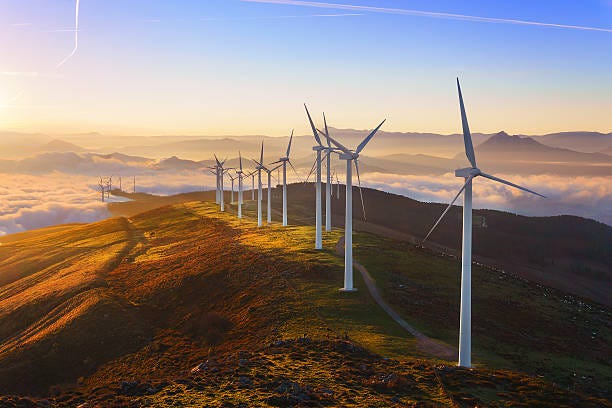

After a decade of stagnation, it seems that the trend could be reversed in 2023, since Iñigo Ansola reported that a dozen wind energy installations are in the processing phase in the Basque Country, up to a total of 486 MW. To list a few, the 40 MW 'Azazeta' park of the Aixeindar company (Basque Energy Agency and Iberdrola), the 'Cantoblanco' project, with a capacity of 49 MW, in Añana and Ribera Alta or the 'Artzentales- Sopuerta' of 50 MW, in the Biscayan towns of Muskiz, Galdames, Sopuerta and Artzentales.
At this juncture, just as our ancestors went to sea to chase whales to Newfoundland in the 15th century, we will turn our gaze to the sea, specifically to the 176 km coastline on the shores of the Cantabrian Sea that we have , as an option for the generation of renewable energy through off-shore wind technology.
Such technology is widespread in the Baltic Sea, since the seabed is 55 m deep and it is feasible to anchor the platforms to the mainland. At sea, the air density is lower, and in the absence of an obstacle at level 0, the wind is more constant. Therefore, higher load factors are obtained in offshore wind turbines, that is, a higher electricity generation. However, the challenge is not easy, since the marine environment is corrosive due to the intrinsic salinity of the sea. All this results in an increase in the cost of maintenance of the facilities.

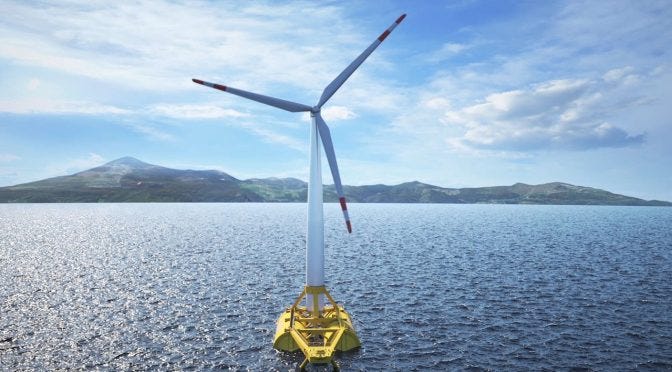

But the biggest challenge that we face in the Basque Country lies in being able to develop floating platforms that allow the wind turbines to be erected in operation, given that the seabed of the Bay of Biscay will not allow it to be anchored, since the Cap Breton trench runs parallel to the coast Cantabrian cutting the shelf and the continental slope.
In front of the municipality of Armintza in 2015 the Basque Government created a test area restricted to navigation called BiMEP (Biscay Marine Energy Platform), which is located at 2 nautical miles with a depth of 85 m. This location is ideal for testing Saitec's 2 MW DemoSATH floating wind platform. Given that this technology will allow us to have the renewable energy that we lack on land, due to the absence of a large solar or wind resource due to the orography of the territory, and in this way, evolve towards a more respectful society with the environment.
Returning to the roots of the tree, we already know what the magic potion for Euskadi is, although this time it was not created by the druid of the village, Panorámix. As the Frenchman Antoine-Laurent Lavoisier stated, "Energy is neither created nor destroyed, it is transformed", and just as we reconverted ourselves in the 80s, and sowed the wickerwork for the onshore wind energy value chain, A window is once again open for us to become pioneers in this disruptive technology. Since this technology if it exceeds the bravery of the Cantabrian Sea, it can be exported to practically all the coasts of the world. Let's conquer the world again, BOGA MARINELA!
